How to Use Drone Survey Data on Your Quarry

Drones cut down quarry surveying times to hours instead of days or months, and they’re cheaper than traditional survey equipment. There’s a whole lot more that drones can do for quarries, however. Let’s look at different workflows to see how you can use your data to best effect.

Faster, more accurate stockpile management and reporting

Stockpile management is the most widely used worksite application for drones. This is for good reason: drones have completely transformed this common workflow. The old days of “walking a stockpile” are surely numbered.

mesuring quarry stockpile volume using Propeller

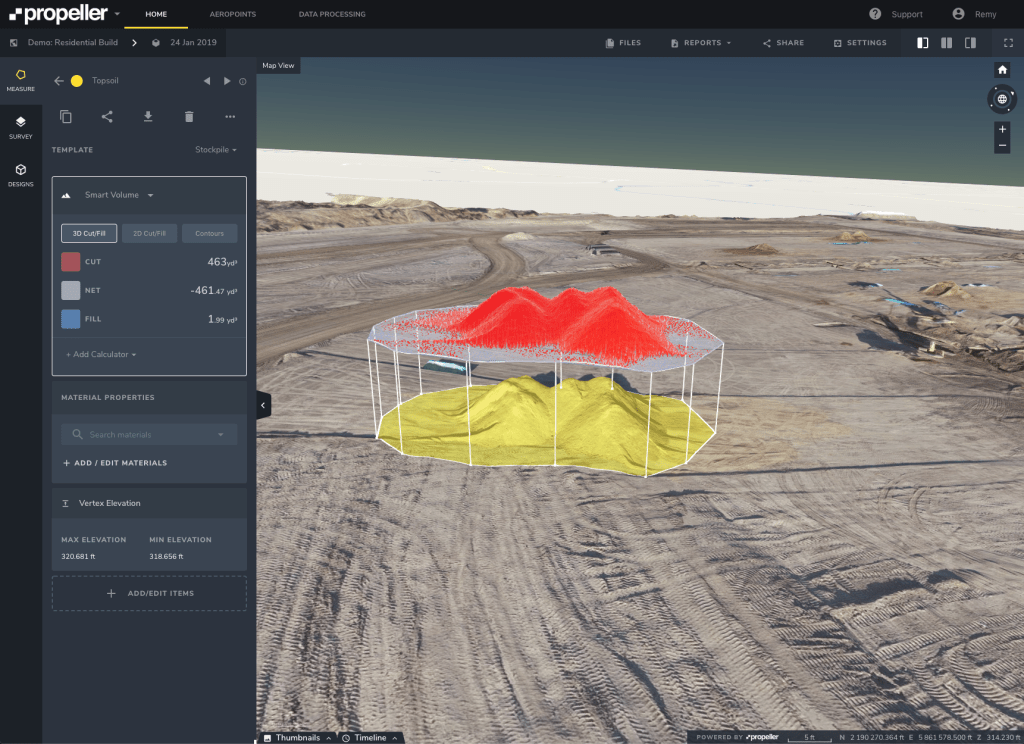

Stockpile volume measurement in 3D

With a drone, you can now capture an entire sales yard in less than 30 minutes. Within a processing platform like Propeller, getting accurate volume calculations and comparisons takes just a few seconds, with all your measurements easily exported to CSV files or PDFs.

Because surveying stockpiles via drone is so much easier and quicker than traditional methods, gathering data more frequently is no longer cost- or time-prohibitive. You can fly your quarry as often as you want new data. You don’t have to wait for a biannual aerial flyover or for an outsourced surveyor walk your site. With more up-to-date information, you can improve quarry management and ensure more consistent grades through the crusher.

The surveying process overall is also safer. Drones remove the risks that come with having personnel physically moving around the worksite.

Even if you stopped here and just used drones for stockpile management, you could make a good business case for introducing drones to your site. But there’s much more you can do with this data.

Streamline quarry planning and building

Drones can also help with the planning and building side of things. With accurate and up-to-date data, your processing engine can create a visualization of your quarry. This allows for better pit and dump design and management.

With regular flights, you build up a visual record of changes over time, which permits you to check weekly or monthly pit volumes and compare the current surface against previous datasets.

Additionally, by overlaying KML design files on a 3D survey within a platform like Propeller, you can check the conformance of the actual site and determine the exact volume of material that needs to be extracted or moved to meet the design.

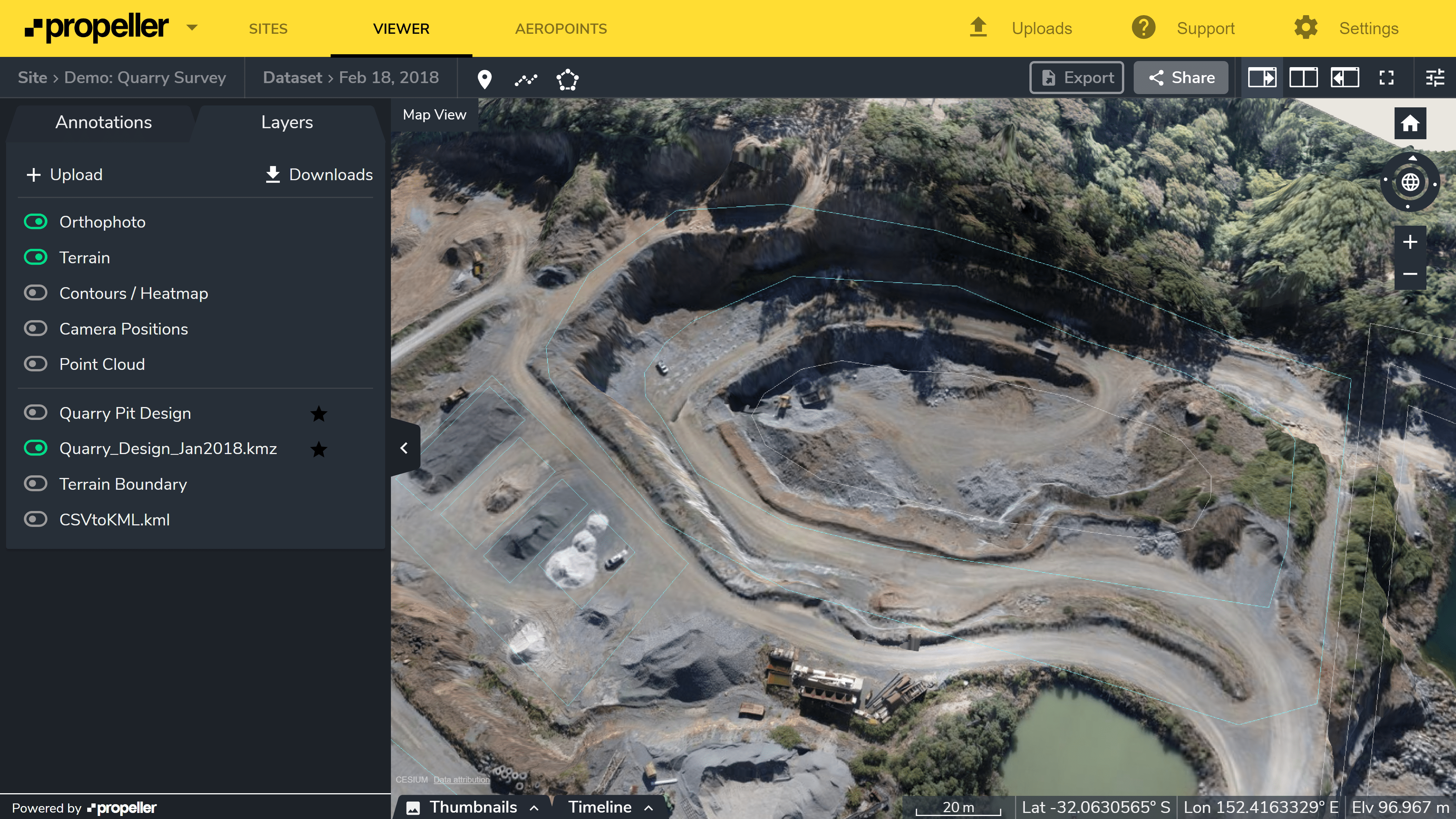

quarry pit design overlay

You can also model sediment flow with elevation maps, which let you better plan tailings basin operations.



Save time on drilling and blasting

Almost any area you’re thinking of blasting can be easily and inexpensively surveyed by drone. The data you capture preblast includes rock-type variation in a bench, face angles, rock condition, and, of course, volumes.

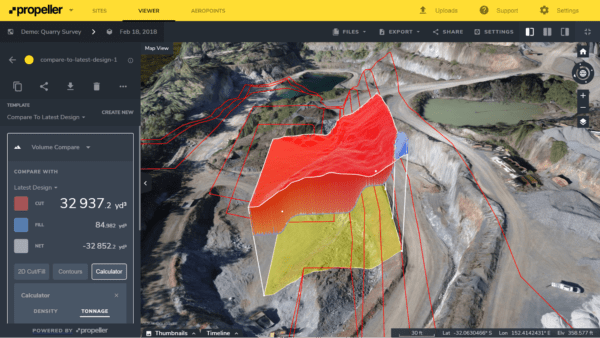

Pre blast volume measurement in a quarry

When you processing that data into a 3D survey, you can use a platform’s measurement tools to calculate drill depths accurately and analyze your blast area. This means getting better estimates on what a particular blast will yield before you drill a single hole. With accurate estimates, you can plan better down the road on how many trucks you’ll need, etc.

You can survey again after the blast. This lets you measure postblast volume and provides a picture for visual assessments of blast results, like muckpile shape, back damage, and distribution and fragmentation.

Monitor your roads more efficiently

On an active quarry, your roads take a beating and road quality can change quickly. Because you can get surveys more often with drones, assessing haul road conditions on a frequent and regular basis can become the norm. Not to mention accurate traffic planning.

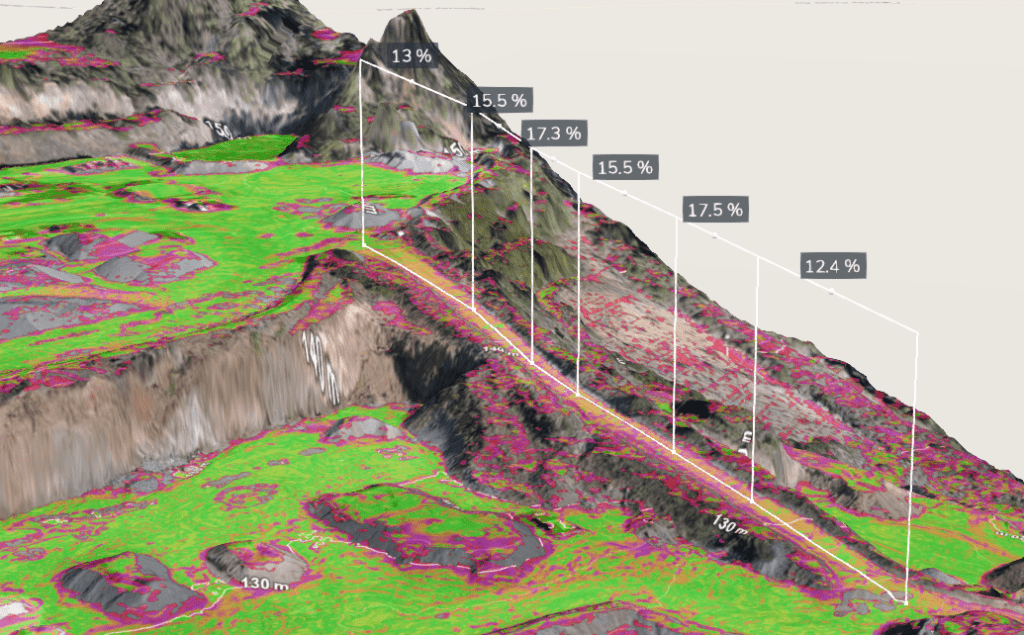

Haul road grade measurement using drone data

And that’s just the visual inspection side of things. In processing platforms like Propeller, you can measure road lengths, slopes, grades, and check roads against design and safety requirements with just a few clicks.

Now, you know that being able to do all this quickly and accurately increases your mobile plant efficiency and reduces cycle times, but too often with traditional methods it just isn’t possible. Drones help close that data gap between you and your quarry.

Perform quarry inspections more safely and easily

Perhaps most obviously, drones are great for getting eyes on hard-to-reach places. They can go where humans cannot. This makes them terrific for both safety and asset inspections. The high-resolution images they take capture details and aspects that may not be visible from wherever you are on the ground, and these can be used by multiple departments in a variety of inspection workflows.

Since you’re taking surveys over time, you can build a timeline of the life of your quarry. This helps with monitoring site boundaries, especially when it comes to environmental protection. You can track and mark off spaces that should not be disturbed. And because you can grant access to the visualization to others on site, it’s easy to show everyone where the no-go zones are.

On the most basic level, drone surveys are made up of individual images. These snapshots can also help with various workflows. For example, geologists can view photos individually and do accurate geotech mapping and rock face inspections.

Further, because everyone is working from the same images, the same data, drone surveys provide a single source of truth across departments and sites. With various permission and sharing capabilities in your platform, you, your team, and different departments can access all the data they need, without second-guessing its accuracy. You can be confident that everyone is on the same page.

Ensure your quarry is safe

Safety is the number-one priority for any quarry. As you might have guessed by now, drones can help improve that too.

First, there’s the immediate benefit of reducing job hazards for your people. When you use a drone to perform remote surveys and inspections of potentially hazardous locations like the bottom of the pit, block caves, and heavy traffic areas, you don’t have to send in personnel to see what’s going on. Everyone’s out of harm’s way.

Second, you can ensure better safety planning and risk detection. This is possible because drone-captured data helps you better spot and monitor worksite hazards. You can make sure your site is safety compliant by checking windrow heights, berms and tailings dams, and measure overall pit slope or individual slope angles.
