What is an orthophoto? Coordinate systems, accuracy, and WGS84

Orthophotos are geometrically corrected aerial images that function like a map, allowing teams to measure distances and positions across a site. This guide explains how orthophotos are created using drone photogrammetry, what determines their accuracy, why coordinate systems like WGS84 matter, and how construction and surveying teams use them for planning, progress tracking, and site documentation.

Orthophotos are one of the most widely used outputs from drone surveys. They give teams a detailed aerial view of a site that also functions as an accurate map, measurable, scalable, and spatially reliable.

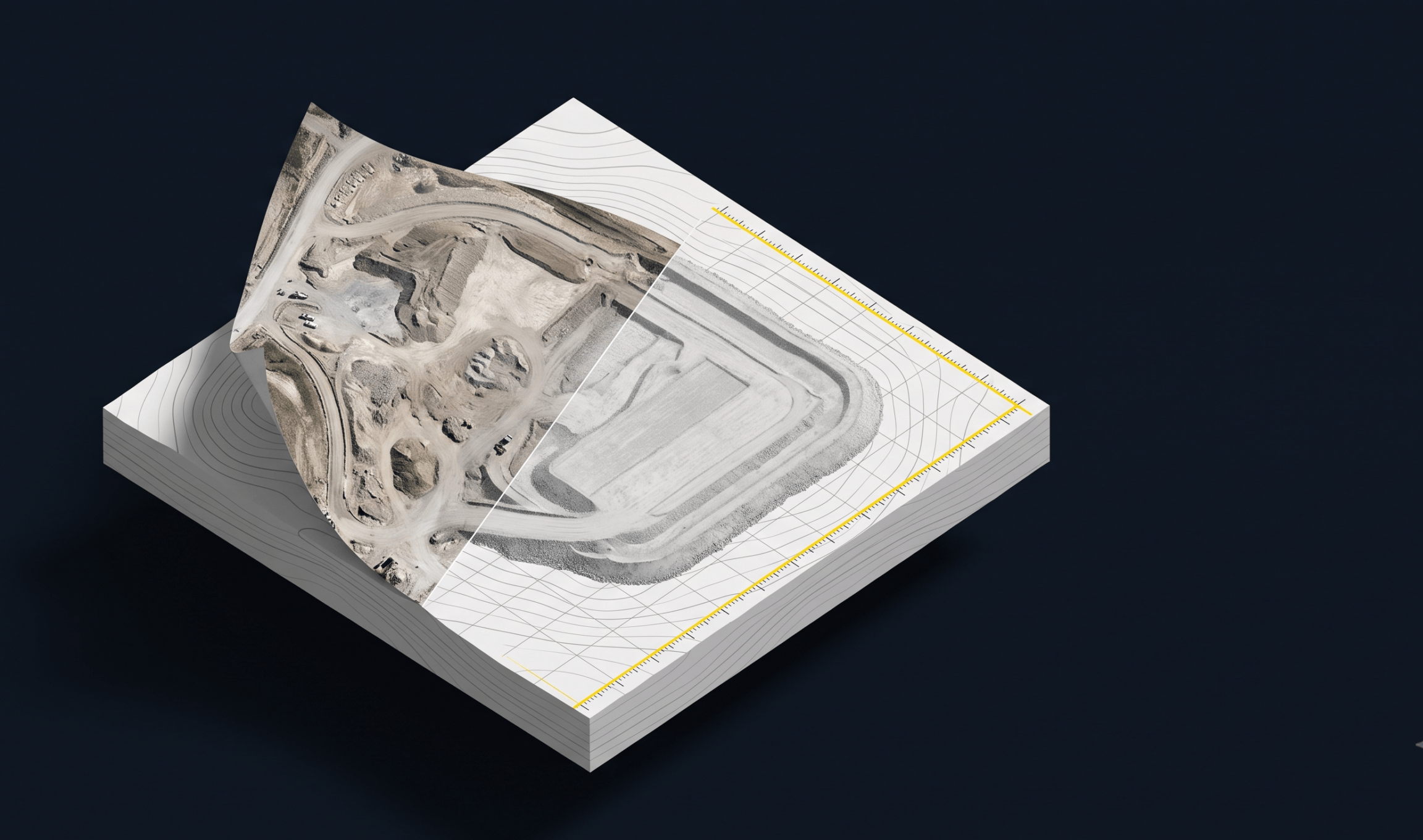

Unlike a standard aerial photograph, an orthophoto has been geometrically corrected to remove the distortions introduced by perspective, terrain variation, and camera angle. That correction is what makes it useful for construction and topographic surveying workflows.

This article covers what orthophotos are, how they are created through drone photogrammetry workflows, what determines their accuracy, and why coordinate systems like WGS84 matter for teams working with drone data.

How are orthophotos created?

Orthophotos are created by processing overlapping aerial images and correcting them using survey control and geospatial data.

Capture aerial imagery

A drone flies a planned route over the project site, capturing hundreds or thousands of overlapping photographs. That overlap is essential: photogrammetry software uses features visible in multiple images to reconstruct the spatial geometry of the scene.

Process images

Photogrammetry software identifies shared features across overlapping images and calculates how each image relates to the others and to the real world. This step, bundle adjustment, builds a model of the entire site from the perspective of every photo captured.

Correct distortion

Once the scene geometry is understood, distortion from perspective, terrain, and lens effects is removed. Ground control points (GCPs) or GPS-corrected position data tie the corrected imagery to a known coordinate reference system, anchoring each pixel to an actual ground location.

Generate the final orthophoto

Corrected images are stitched together into a seamless orthophoto covering the full project site. The result is a measurable aerial map, processed in the cloud and ready for the whole project team to access on any device, with no specialist software required.

What determines orthophoto accuracy?

Orthophoto accuracy depends on image quality, survey control, GPS corrections, and processing workflows, not resolution alone.

A common misconception is that a higher-resolution orthophoto is a more accurate one. It is not. A sharp, detailed image can still be spatially incorrect if the control network is weak or GPS corrections haven’t been applied. Real accuracy depends on:

– Ground sampling distance (GSD): The real-world area represented by each pixel. Lower GSD means higher spatial detail. For construction applications, 1–3 cm GSD is typical
– Ground control points (GCPs): Marked targets placed at known ground locations. When included in processing, GCPs tie the orthophoto to a coordinate reference system and substantially improve absolute accuracy
– GPS corrections: PPK drone mapping and RTK workflows provide high-precision position data for every image captured, reducing or eliminating dependence on GCPs while maintaining accuracy
– Flight planning: Altitude, overlap percentage, and flight pattern all affect image quality and spatial consistency across the output
– Processing quality: Rigorous processing workflows, including QA/QC checks, consistent methodology, and careful handling of control data, directly affect the reliability of the final orthophoto
– Repeatability: Consistent methods across repeated flights allow teams to compare orthophotos confidently over time, supporting progress tracking and change detection

For construction applications, consistent methodology across the full survey processing workflow is as important as any individual accuracy metric.

Why coordinate systems matter in drone mapping

Coordinate systems ensure that orthophotos align accurately with survey data, design files, and construction plans. When they don’t match, data that is internally accurate will appear misaligned when combined.

The practical consequences for construction teams:

– A design file in a local coordinate system overlaid on an orthophoto in WGS84 may appear displaced by hundreds of meters, even if both datasets are internally accurate
– Cross-sections and cut/fill calculations derived from mismatched datasets will produce incorrect elevation and volume results
– Volume calculations compared against design surfaces require both datasets to share the same coordinate reference frame

For construction site management, a consistent coordinate reference system across drone surveys, design files, and CAD outputs is a prerequisite for reliable measurement. Teams that standardize on a single CRS can overlay, compare, and measure with confidence from survey to survey.

Common limitations of orthophotos

Orthophotos provide accurate horizontal measurements but do not capture elevation or terrain depth.

An orthophoto shows what the ground looks like from above. It does not capture the height of features or the depth of terrain. For vertical measurements, a digital surface model or digital terrain model is required alongside the orthophoto, both outputs that Propeller’s survey processing workflows deliver as part of every project.

Other limitations to consider:

– Vegetation: Dense vegetation can obscure the ground surface beneath it, reducing terrain model accuracy in treed or heavily vegetated areas. LiDAR workflows are better suited to capturing accurate terrain through canopy, and Propeller’s LiDAR processing handles this for supported sensors
– Accuracy dependencies: Orthophoto spatial accuracy relies on consistent GSD, survey control, GPS corrections, and processing workflows. Weak inputs produce unreliable outputs regardless of image resolution

For construction and earthworks applications, orthophotos are most powerful when combined with digital surface models and measurement tools, delivering both visual clarity and quantitative measurement from a single drone survey.

Why orthophotos matter

Orthophotos give construction and surveying teams accurate, measurable aerial views of their project sites. As one of the most widely used orthophotos and drone survey outputs from drone survey workflows, they support planning, progress tracking, documentation, and decision-making from the start of a project to the final handoff.

The accuracy of an orthophoto depends on consistent survey control, GPS corrections, and processing workflows. Coordinate systems like WGS84 ensure that drone mapping data aligns with design files and existing survey data. When both are in place, orthophotos become a reliable foundation for every measurement, overlay, and progress comparison a team needs.
